Friday 7 June 2019

WORLD BAND RADIO

WORLD BAND RADIOS

ALL BAND RADIOS

MULTIBAND RADIO RECEIVERS

SHORTWAVE RADIOES

The Sailors Favourite Radio!

Zenith Trans-Oceanic Royal 7000-1

Zenith Trans-Oceanic

Royal 7000-1

Portable World Band Receiver

The World Travelling Explorers

1.st choice in Portable World Band Radios!

Welcome to My Radio World - World Band Radioes!

Check out more Grundig Satellit Radioes on this link:
GRUNDIG SATELLIT WORLD BAND RADIOS

ZENITH SOLID STATE WORLD BAND RADIOS!

PROFESSIONAL ALL BAND RADIOS

DIRECTION FINDERS! COMPASS DIAL!

FLIP UP/DOWN WORLD MAP

The World Globe Radio & Vintage Analog Camera

Preparing for The Great World Tour!

A Very Popular & Famous World Band Receiver!

Grundig Satellit 6001

Vintage "Teak" & "Chrome" Model

GRUNDIG SATELLIT WORLD BAND RADIOS

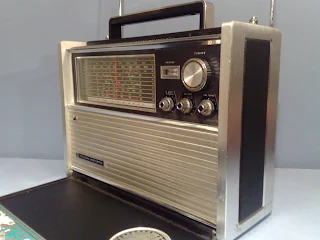

National Panasonic Model RF-5000A

1969 Model

ALL BAND - Multiband World Receiver

FM-AM 11-Band - 8 Shortwaves!

Signal Meter & Fine Tuning

Fold-Up/In-Frame Antenna & Twin Telescope Antennas

Power Source: AC 110 -120 V AC 50/60 Hz 12 Watt

Battery Power: 9 V DC by 6 x D Cells Batteries

Serial No. 51283F

Matsushita Electrical Industrial Co. LTD.

Made in Japan

Tom's Radio World - TOMANIA

National Panasonic Model RF-5000A

ALL BAND - Multiband World Receiver

FM-AM 11-Band - 8 Shortwaves

LW MW SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8

Meter Wave Band Length converted to Frequency Band

FM * VHF * 3,4 - 2.7 Meter - 87,5 - 108 MHz

(Eks. 2-Meter Amateur Band - 2 Meter = 145 MHz)

Bølgelengden Lambda = c/f
c = speed of light - f = frequency - Lambda = wave length
300 000 000 / 87 500 000
This is what I learned a Radio School

CONVERSION FREQUENCY WAVE LENGTH

SW8 * 10.0 - 12.0 Meter * 25.0 - 30.0 MHz * 12.0 - 10.0 Meter * SW 8
SW7 * 12.0 - 15.0 Meter * 20.0 - 25.0 MHz * 15.0 - 12.0 Meter * SW 7
SW6 * 15.0 - 18.7 Meter * 16.0 - 20.0 MHz * 18.7 - 15.0 Meter * SW 6
SW5 * 18.7 - 25.0 Meter * 12.0 - 16.0 MHz * 25.0 - 18.7 Meter * SW 5
SW4 * 25.0 - 33.3 Meter *  9.0 - 12.0 MHz * 33.3 - 25.0 Meter * SW 4
SW3 * 33.3 - 46.2 Meter *  6.5 - 9.0 MHz * 46.2 - 33.3 Meter * SW 3
SW2 * 46.2 - 66.7 Meter  * 4.5 - 6.5 MHz * 66.7 - 46.2 Meter * SW 2
SW1 * 66.7 - 187 Meter   * 1.6 - 4.5 MHz * 187 - 66.7 Meter * SW 1

MW * 187 - 571 Meter *   525 - 1605 KHz * 571 - 187 Meter * MW

LW * 750 -  2000 Meter * 150 - 400 KHz * 2000 - 750 Meter * LW

# Red. ref. U-Boat - Submarine Frequency = Long Waves
750 - 2000 meter long waves - 2 kilometer long radio waves!

CONVERTED FREQUENCY BAND TO METER BAND

LW 150 - 400 KHz - 2000 - 750 Meter

MW 525 - 1605 KHz - 571 - 187 Meter

SW1 1.6 - 4.5 MHz - 187 - 66.7 Meter

SW2 4.5 - 6.5 MHz - 66.7 - 46.2 Meter

SW3 6.5 - 9.0 MHz - 46.2 - 33.3 Meter

SW4 9.0 - 12.0 MHz - 33.3 - 25.0 Meter

SW5 12.0 - 16.0 MHz - 25.0 - 18.7 Meter

SW6 16.0 - 20.0 MHz - 18.7 - 15.0 Meter

SW7 20.0 - 25.0 MHz - 15.0 - 12.0 Meter

SW8 25.0 - 30.0 MHz - 12.0 - 10.0 Meter

Panasonic

National Panasonic Model RF-5000A

1969 Model

ALL BAND - Multiband World Receiver

FM - AM 11-Band - 8 Shortwaves

LW MW SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8

LW 150 - 400 KHz - (2000 - 750 Meter)

MW 525 - 1605 KHz - (571 - 187 Meter)

SW1 1.6 - 4.5 MHz - (187 - 66.7 Meter)

SW2 4.5 - 6.5 MHz - (66.7 - 46.2 Meter)

SW3 6.5 - 9.0 MHz - (46.2 - 33.3 Meter)

SW4 9.0 - 12.0 MHz - (33.3 - 25 Meter)

SW5 12.0 - 16.0 MHz - (25 - 18.7 Meter)

SW6 16.0 - 20.0 MHz - (18.7 - 15 Meter)

SW7 20.0 - 25.0 MHz - (15.0 - 12 Meter)

SW8 25.0 - 30.0 MHz - (12.0 - 10 Meter)

Ext. connetions:
FM Antenne 75 ohm coax & 300 ohm + AM Ant. Input
The 75 ohm connection also used i Cars! Great ON Tour!
MPX INPUT - Stereo IN - Tape & Turntable/Gram Input
Output connection for Headphone - Earplug

Power Source: AC 110 -120 V AC 50/60 Hz 12 Watt

Battery Power: 9 V DC by 6 x D Cells Batteries

Serial No. 51283F

Matsushita Electrical Industrial Co. LTD.

Made in Japan

Tom's Radio World - TOMANIA

Portable Multi-band World Receivers

"MY FAVOURITE"

SILVER XF 900 SPACEMASTER IC

Silver XF 900 Spacemaster IC Portable Multi-band receiver

This is in Daily Use - Love the sound on This Radio!

Simply & Easy to Operate!

Reminds me on my days as a Sailor on The Seven Seas!

PHILIPS

PHILIPS FM-AM DE LUXE

1965 Model

PHILIPS L6X39T

ANTOINETTE TRANS-WORLD DE LUXE

Tom's Radio World - TOMANIA

PHILIPS FM-AM DE LUXE

Philips "Top of The Line"

Great Portable World Band Radio

Fantastic Design & Innovative Electronic!

Made in "The 1960-ties"!

1965 - 1969

Tom's Radio World - TOMANIA

ITT - Touring International - Schaub Lorenz

Model Year - 1972-73

Portable Radio with Marineband

Flaggskipet i ITT's Reiseradioserie!

Den har absolutt alt man kan forlange av en reiseradio!

Hele 8 bølgebånd LB, 2 MB, FM og hele 4 KB (inkl.FB)

Utgangseffekt ved batteridrift 2 watt hele 4 watt ved nettdrift!

Tom's Radio World - TOMANIA

ITT - Touring International - Schaub Lorenz

8 Band World Radio

All Band Radio FM LW Marine Band MW Band 4 SW Bands

ITT Schaub Lorenz Touring International Portable Radio

Den har absolutt alt man kan forlange av en reiseradio!

Hele 8 bølgebånd LB, 2 MB, FM og hele 4 KB (inkl.FB)

Utgangseffekt ved batteridrift 2 watt hele 4 watt ved nettdrift!

ZENITH

T 600

Super De Luxe

Trans-Oseanic Portable

World Band Radio

ZENITH Super De LuxeTrans-Oceanic Portable

Model T600 - T600L

1955

Price new: 140.- US $

This model Private Import to Norway - 1959

Import-tillatelse 008531 1. Sep. 1959

Very Well used Vintage Model

For Privat Import Pris ikke over: Kr. 244,44 Avg. 20.-

ZENITH Super De LuxeTrans-Oceanic Portable

Model T 600

Steepletone Multiband Radio Receiver

Steepletone Model No. MBR 7

Great Portable Radio

LW-MW-MB-SW1-SW2-FM-AIR Multiband Receiver

FM 88 - 108 Mhz - AIR 110 - 140 MHz

Direction Finder Antenna + Telescopic Antenna

Power: 6 V DC on Batteries

Ext. power 12 V DC & 240 V AC 5 Watt

Still in Daily Use in My Radio Workshop!

Easy Manual Working - Vintage - Multiband Radio with FM!

(In My Private use 1985 - 2019)

Only 5 Watts - I power this with 12 V DC Solar Power!

- Made in Hong Kong -

Tom's Radio World - TOMANIA

Realistic Concertmate

Realistic Concertmate AM - FM Portable Radio

Trade Name Model No. 12-708

Radio Shack - A Division of Tandy Corporation - (U.S.A.)

Serial no. 22231609

Product of Taiwan

Tom's Radio World - TOMANIA

MELBA

Multi Band VHF

Super Sensitive Multi-Band

Solid State

Melba Super Sensitive Multi-Band Portable Radio

Solid State AM FM VHF UHF All Band Radio

AM FM VHF AIR PB2 WB

LOW BAND VHF 70 - 88 MHz - TV's Sound - AIR 110 - 135 MHz

Police Band 145 - 174 MHz Weather Band 162,5 MHz (110 - 174 MHz)

Amateur VHF + Aeroplane Freq. + Police Band + Weather B.

One of these cheap radioes giving many young boys the chance to listen to Ham Radio - Aeroplanes and Air Control Towers - The Police Channels and more !

Very exciting radio for a Young Radio-listener i The Great 1960-ties and 1970-ties!

Made in Hong Kong

In Tom's Radio World Collections - TOMANIA
